Description

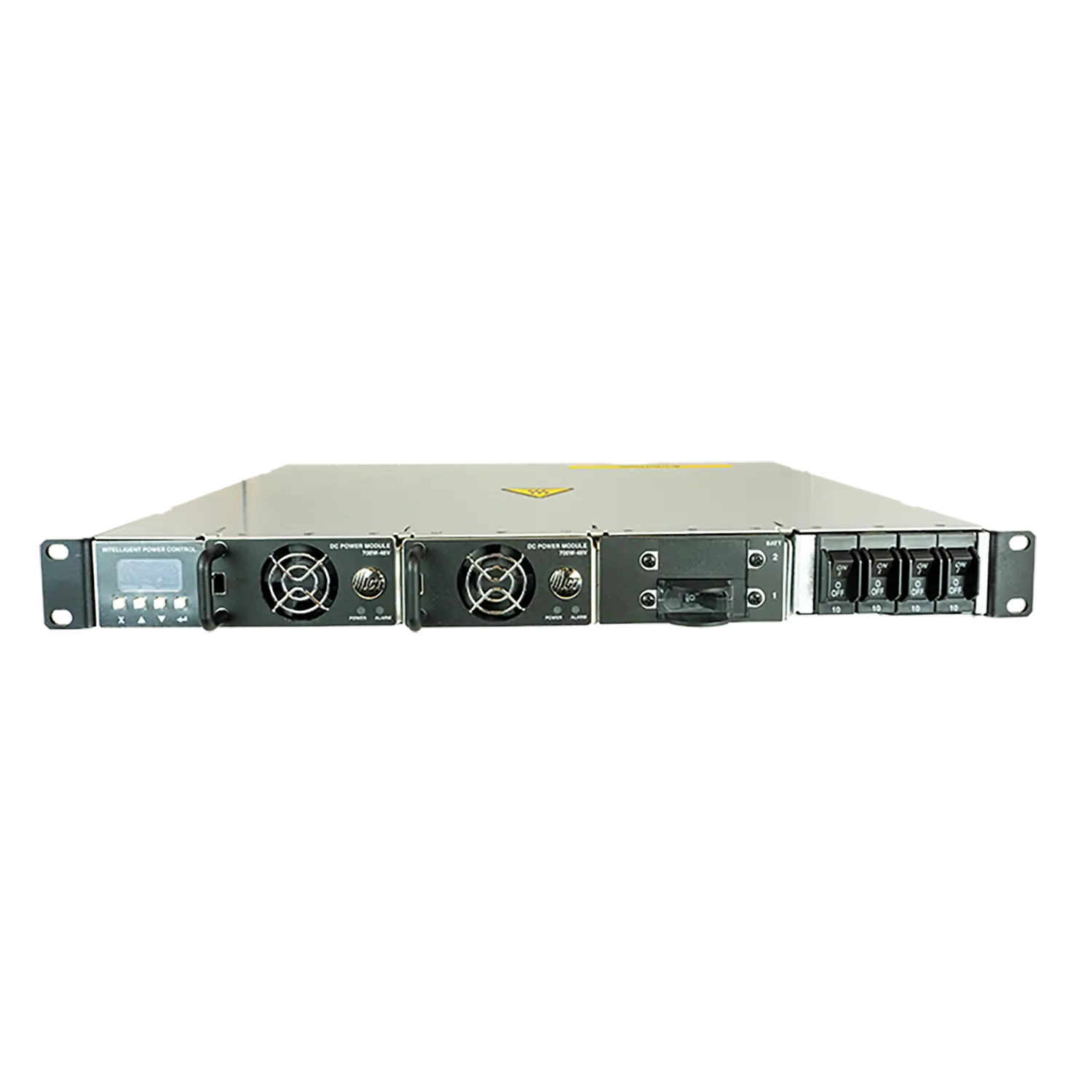

ICT-IPS-LDM-LDMP – Intelligent Power Shelf – Managed Load Distribution with 100A Battery Protection
The ICT-IPS-LDM-LDMP combines DC power conversion, managed load distribution and intelligent battery protection into a compact 1RU chassis. Designed for use with ICT 700W hot-swappable power modules, the system supports 1400W maximum and can be configured for N+1 redundant operation or parallel full-capacity mode depending on site requirements.
The integrated four-position Load Distribution Module (LDM) provides breaker-protected outputs rated up to 20A each, with remote power cycling, current monitoring and alarm reporting for improved uptime. The shelf also includes a 100A battery breaker with Low Voltage Disconnect (LVD), protecting battery banks from over-discharge while maintaining supply to critical loads.
With the built-in Ethernet controller, the shelf delivers secure remote visibility and control of voltage, load current, alarms, I/O and battery parameters, helping operators reduce truck rolls and enhance network reliability.
Features and Benefits
- Up to two 700W hot-swappable ICT power modules for 1400W maximum DC output.
- Selectable operation for N+1 redundancy or parallel full-load support.
- Four managed DC load outputs, each monitored and protected by hydraulic/magnetic circuit breakers.
- 100A battery breaker with LVD helps safeguard backup batteries and connected loads.
- Built-in Ethernet interface with secure web GUI and SNMPv3 for comprehensive system monitoring and control.
- Robust design supports reliable field operation from -30°C to +60°C.
Key Applications
- Fixed Wireless Access and Radio Access Network installations
- FTTP/H and GPON access cabinets requiring intelligent load distribution
- DAS, repeater and small-cell deployments with remote power cycling
- Security and surveillance systems requiring reliable DC backup
- Industrial DC power systems with Ethernet-based power management
Safety Features
- 100A battery breaker with programmable LVD helps prevent deep discharge of backup batteries.
- Four breaker-protected outputs with status indication and current monitoring.
- 80A Load Distribution Module system rating with maximum 20A per output.
- Floating DC output supports correct site grounding methods.
- Guidance provided on conductor sizing and installation best practices.
Safety & Compliance
- Designed to EN60950-1 safety standard when used within a complete ICT Modular Power system.
- EMC compliance aligned with ICES-003, EN55032 and EN61000-3-2 / EN61000-3-3 (system dependent).
- FCC Part 15 and EN61000-6-2 / EN61000-6-3 support when used with 700W modules.
- Restricted access installation with mandatory chassis earthing.
Compatibility – Power Modules, Breakers and Accessories
- Compatible power modules: ICT700-12PM, ICT700-24PM, ICT700-48PM (up to two modules, must match voltage)
- Selectable load breakers: 5A, 10A, 15A, 25A hydraulic/magnetic circuit breakers
- Accessories: ICT-PAR paralleling straps, ICT-JMP shelf communications cable, ICT-BPM blanking panel
Flexible configuration supports expansion, redundancy and intelligent DC load control in a compact 1RU platform.
