Description

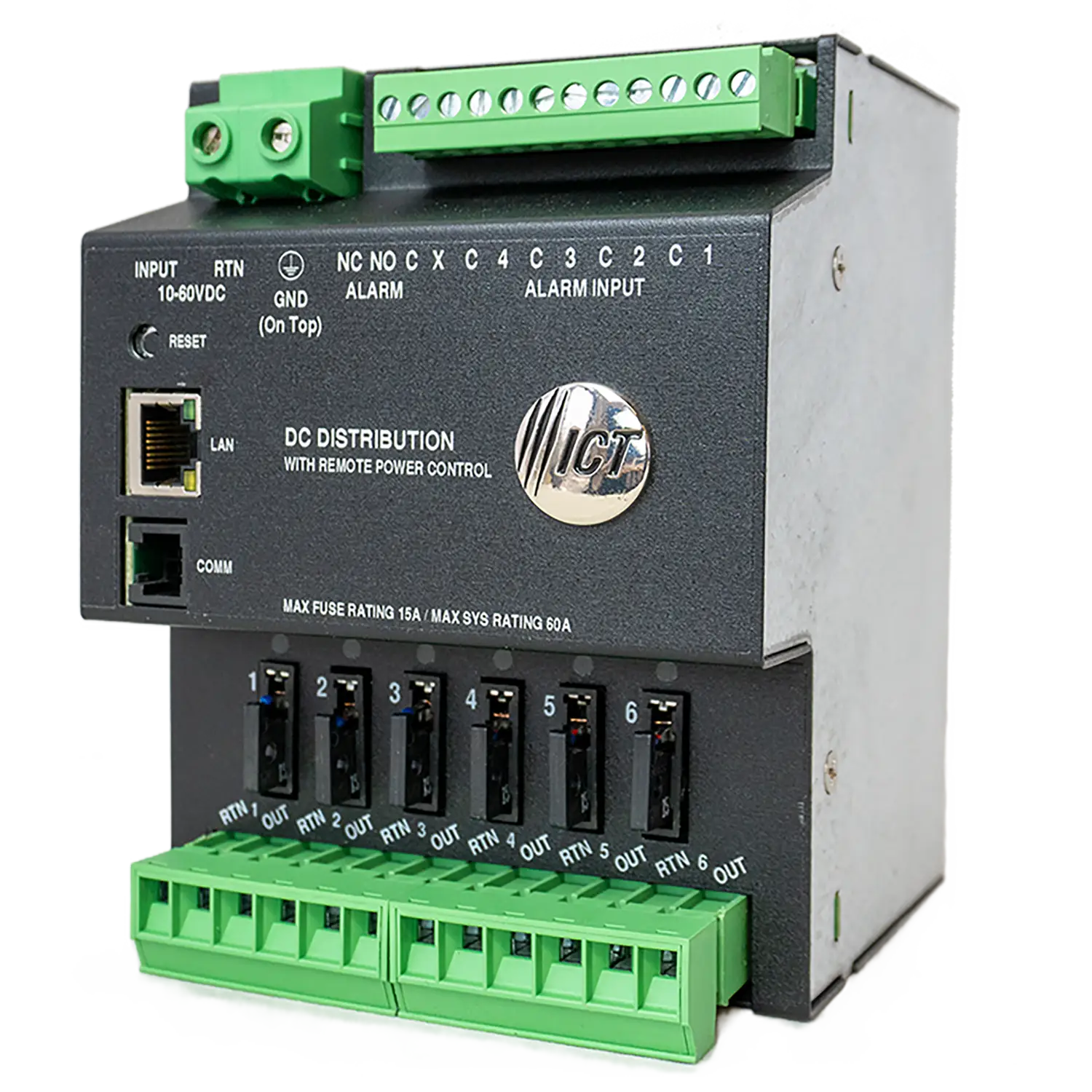

ICT-DIN-PDU6 – Intelligent DIN Power Distribution Unit – Six GMT-Protected Outputs with Ethernet Control
The ICT-DIN-PDU6 is a compact DIN-rail mounted DC power distribution unit with six individually fuse-protected load outputs rated up to 15A each. Its integrated Ethernet controller provides full remote monitoring of voltage, current and fuse status, as well as the ability to power-cycle each output to restore connected equipment.
When paired with an ICT DIN Series 360W or 480W DC power supply, the system enables complete remote management of DC power and batteries, including current sensing, charge current limits and Low Voltage Disconnect settings. This makes ICT-DIN-PDU6 ideal for unmanned locations where reliable uptime and remote recovery of devices is required.
Advanced features include Network Watchdog to automatically reboot devices, configurable alarm thresholds, data logging for up to 30 days and multiple alarm reporting methods including SNMP traps and email alerts. Four alarm inputs allow external sensors to be integrated into site monitoring.
Features and Benefits
- Six GMT-fuse protected DC outputs, each monitored for current and status.
- Remote power-cycling of each individual output via secure web GUI or SNMP.
- Network Watchdog can reboot loads if IP connectivity fails.
- Automatic load shedding supports runtime extension during backup conditions.
- 30-day data logging with downloadable CSV logs for load analysis.
- Integrated Ethernet communications supporting HTTPS, SMTP, TLS 1.3 and SNMPv3.
Key Applications
- Fixed Wireless Access and telecom radio sites
- IoT gateways and sensor networks
- SCADA and industrial automation systems
- Security and surveillance power distribution
- Remote communications cabinets
Safety Features
- GMT fuse protection with trip alarms for each output.
- Alarm thresholds for over/under current and bus voltage deviations.
- Power-up sequencing delays reduce inrush impact on sensitive equipment.
- Auto-restore function ensures loads return to expected state after power loss.
- Fail-safe convection cooling with −20°C to +60°C rating.
Safety & Compliance
- RoHS compliant; FCC Class B emissions.
- Designed to meet CSA 60950 safety requirements.
- TS35 (EN50022) standard DIN rail mounting for secure installation.
Compatibility – Power Supplies, Fuses and Accessories
- Compatible DC power supplies: ICT360-24DIN, ICT360-48DIN, ICT480-24DIN, ICT480-48DIN (monitoring enabled via serial link)
- Supported fuses: GMT 5A, GMT 10A, GMT 15A (sold separately)
Combining ICT-DIN-PDU6 with an ICT DIN DC power supply enables a fully monitored DC distribution system for remote sites.
