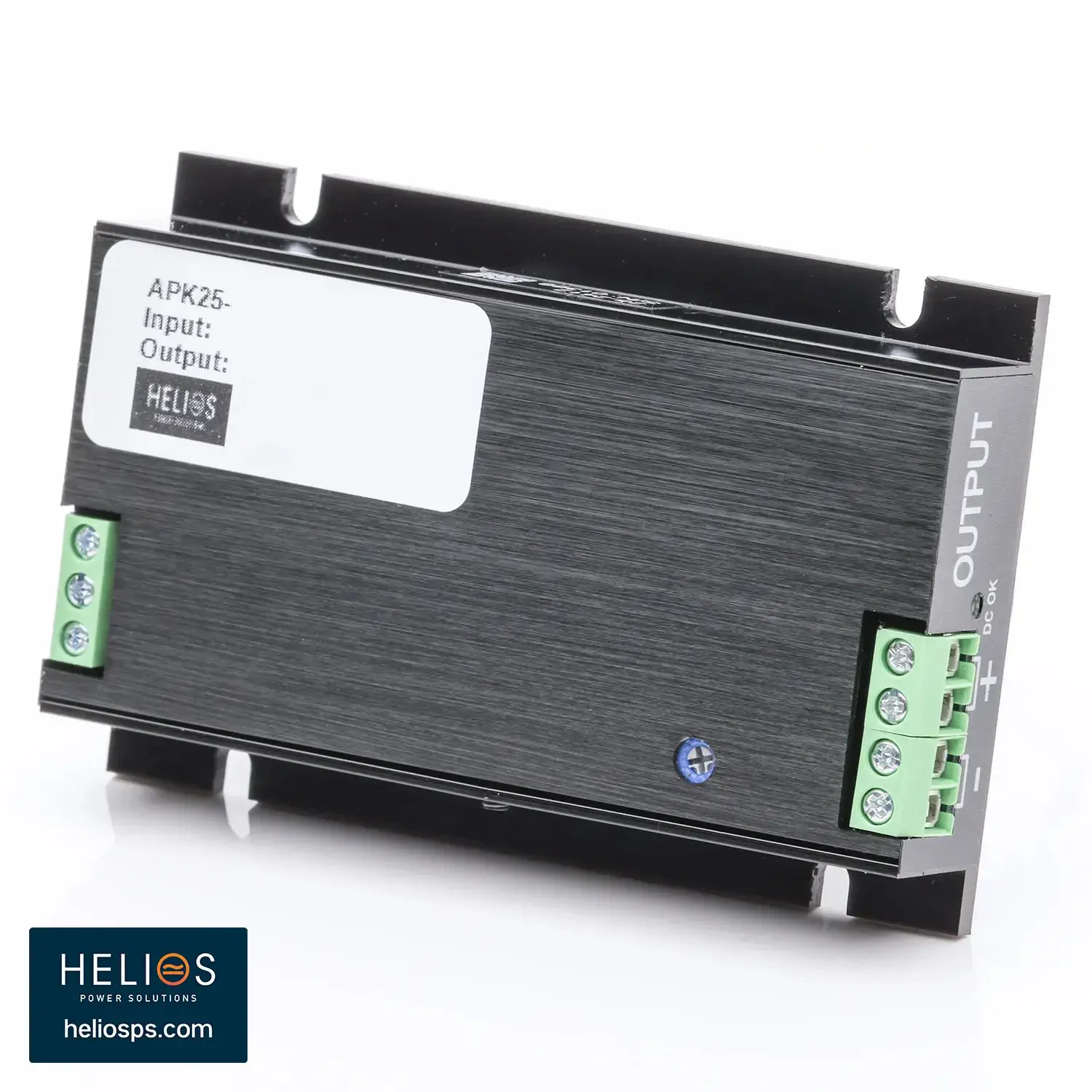

30W Hi-Rel Industrial DC-DC Converters

30W Hi-Rel Industrial DC-DC Converters

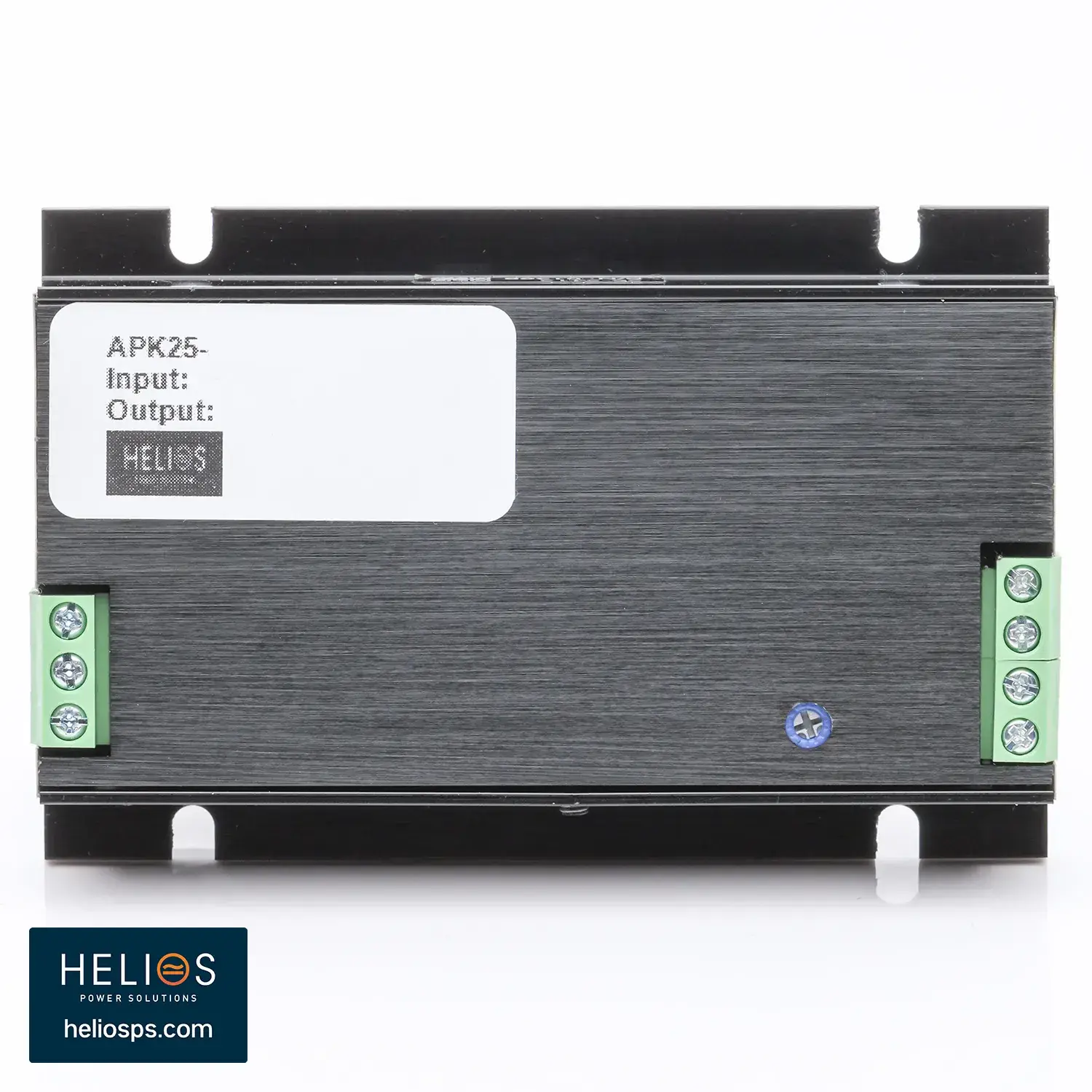

30W Hi-Rel Industrial DC-DC Converters - Image 2

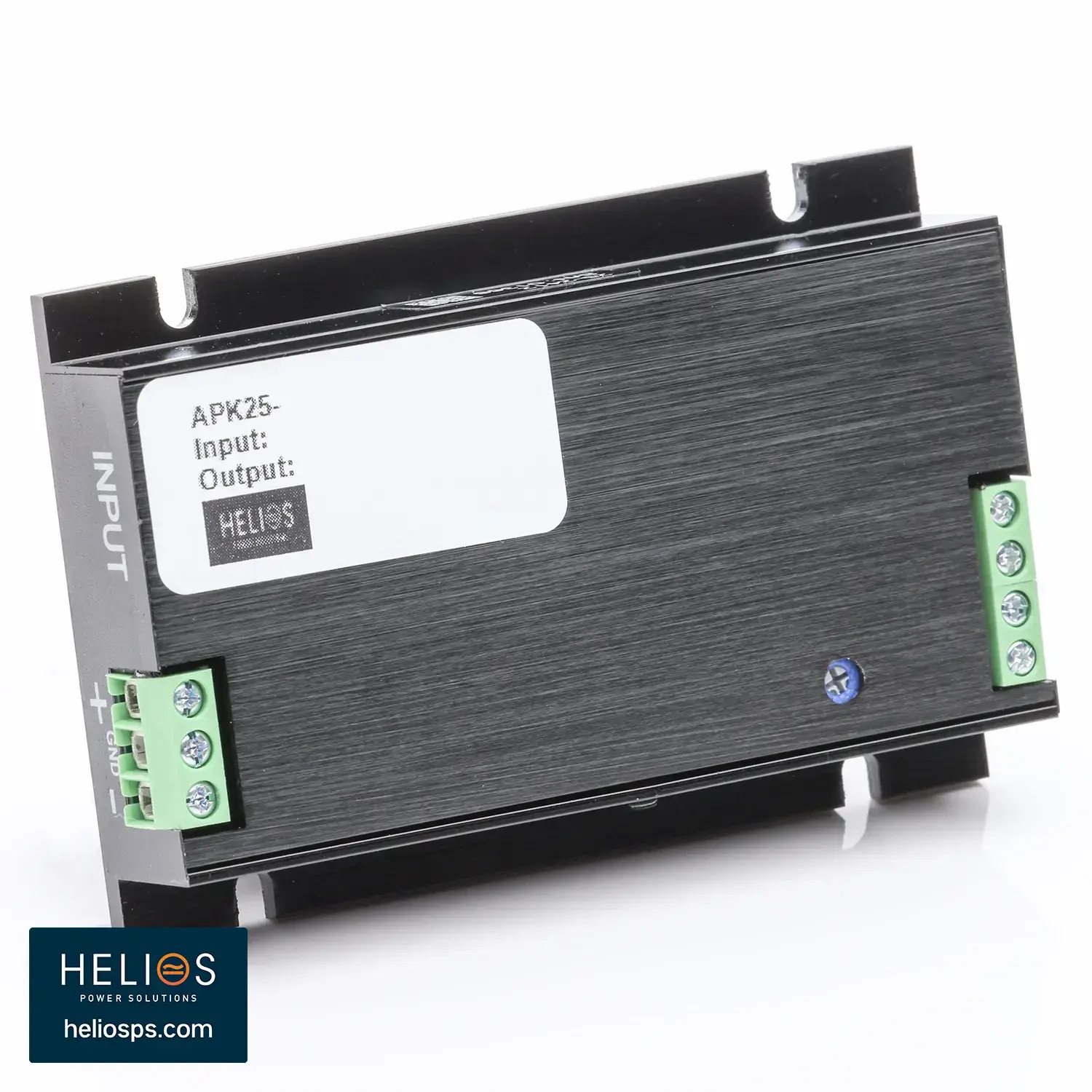

30W Hi-Rel Industrial DC-DC Converters - Image 3

30W Hi-Rel Industrial DC-DC Converters

  • 30W high reliability DC-DC converters
  • Encapsulated, rugged industrial design
  • 12Vdc, 24Vdc, or 48Vdc input options
  • 5Vdc, 12Vdc, 24Vdc, or 48Vdc outputs (adjustable ±7%)
  • Panel mount with screw terminal connections
More Information...
SKU: APK25
Brand: Helios Power Solutions

AUD $148.00(From: AUD $162.80 inc GST)

Note: Australian GST only applies to orders delivered within Australia. International orders are exclusive of GST.

Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $148.00
5-9 5% AUD $140.60
10+ 10% AUD $133.20

Description

APK25 Series – 30W High Reliability Industrial DC-DC Converters (Selectable Input and Output)

The APK25 series is a compact family of high reliability 30W DC-DC converters engineered for demanding industrial, transport, and automation environments. With 12Vdc, 24Vdc, and 48Vdc input options, the series delivers regulated outputs of 5Vdc, 12Vdc, 24Vdc, or 48Vdc, with ±7% output adjustment for fine-tuning.

Encapsulated in a rugged anodised aluminium enclosure and convection cooled, the APK25 series is hardened against EMC interference and proven in harsh electrical environments. It achieves efficiency up to 88% and long-term dependability with an MTBF of 720,000 hours. Full protection is provided against short circuit, overload, overvoltage, and over-temperature events.

Designed for panel mounting, APK25 converters use screw terminal connections for straightforward integration into control panels and high reliability power systems.

Features and Benefits

  • 30W high reliability DC-DC converters
  • Industrial-grade ruggedised, fully encapsulated design
  • Nominal input options: 12Vdc, 24Vdc, 48Vdc
  • Output options: 5Vdc, 12Vdc, 24Vdc, 48Vdc (adjustable ±7%)
  • Efficiency up to 88%
  • Comprehensive protections: short circuit, overload, overvoltage, over-temperature
  • Panel mount design with screw terminal connections

Key Applications

  • Industrial automation and process control
  • Transport and railway electronics
  • Battery-powered and portable systems
  • Telecommunications and networking equipment
  • Laboratory, instrumentation, and test equipment
  • High reliability systems requiring regulated DC power rails

Approvals and Compliance

  • IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-6
  • MIL-STD 810E (Shock & Vibration) – designed to meet
  • IEC61373 (Railway Shock & Vibration) – designed to meet
  • MIL-SPEC 217K (MTBF methodology) – designed to meet

Additional information

Weight18 kg
Dimensions100 × 65 × 18 mm
Input Voltage

, ,

Output Voltage (Nominal)

, , ,

Output Power (Range)

Output Terminals

Screw Terminals

Specifications

Specification Summary – APK25 Series

Power Rating30W
Input Voltage Options12Vdc (10.8–16Vdc), 24Vdc (21–32Vdc), 48Vdc (42–64Vdc)
Output Voltage Options5Vdc, 12Vdc, 24Vdc, 48Vdc (each adjustable ±7%)
Output Current5V: up to 6A
12V: up to 2.5A
24V: up to 1.25A
48V: up to 0.65A
Efficiency88% typical
Isolation500Vdc (Input–Output, Input–Chassis, Output–Chassis)
ProtectionsShort circuit, overload, overvoltage, over-temperature
Environmental–40°C to +55°C convection cooled; up to +90°C chassis conduction cooled
Mechanical100 × 65 × 18 mm (W × H × D); Weight: 0.18kg; Panel mount; Screw terminal connections
MTBF720,000 hours (MIL-SPEC 217K)

This specification summary may contain errors. Please refer to the product datasheet for full specifications.

Range Summary

APK25 Series – Model Range Summary

Part NumberNominal InputInput RangeNominal OutputAdjustable RangeOutput CurrentPower
APK25-120512Vdc10.8–16Vdc5Vdc4.75–5.25Vdc6A30W
APK25-121212Vdc10.8–16Vdc12Vdc11.4–12.6Vdc2.5A30W
APK25-122412Vdc10.8–16Vdc24Vdc22.8–25.2Vdc1.25A30W
APK25-124812Vdc10.8–16Vdc48Vdc45.6–50.4Vdc0.65A30W
APK25-240524Vdc21–32Vdc5Vdc4.75–5.25Vdc6A30W
APK25-241224Vdc21–32Vdc12Vdc11.4–12.6Vdc2.5A30W
APK25-242424Vdc21–32Vdc24Vdc22.8–25.2Vdc1.25A30W
APK25-244824Vdc21–32Vdc48Vdc45.6–50.4Vdc0.65A30W
APK25-480548Vdc42–64Vdc5Vdc4.75–5.25Vdc6A30W
APK25-481248Vdc42–64Vdc12Vdc11.4–12.6Vdc2.5A30W
APK25-482448Vdc42–64Vdc24Vdc22.8–25.2Vdc1.25A30W
APK25-484848Vdc42–64Vdc48Vdc45.6–50.4Vdc0.65A30W

This range summary may contain errors. Please refer to the product datasheet for full specifications.
