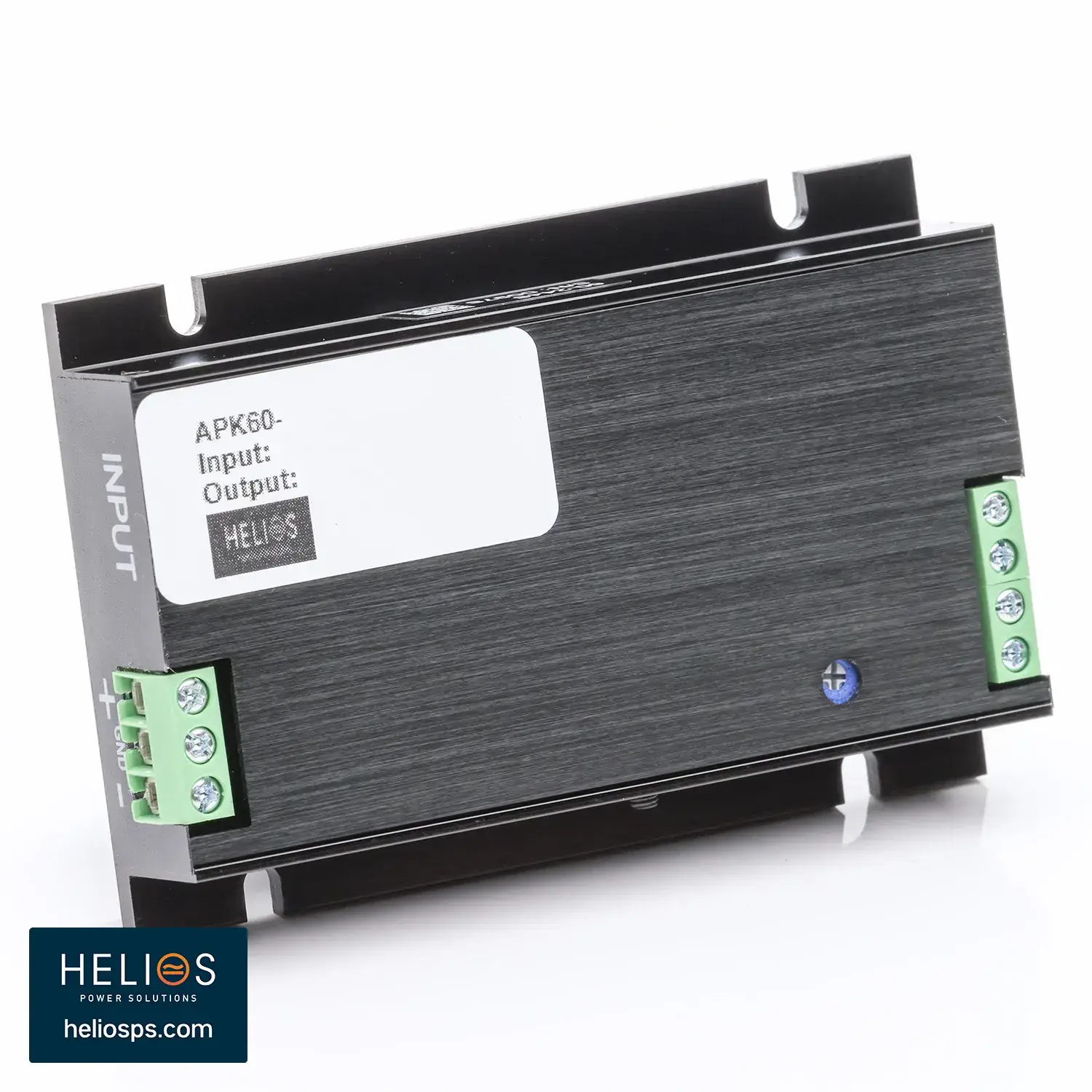

60W Hi-Rel Industrial DC-DC Converters

60W Hi-Rel Industrial DC-DC Converters

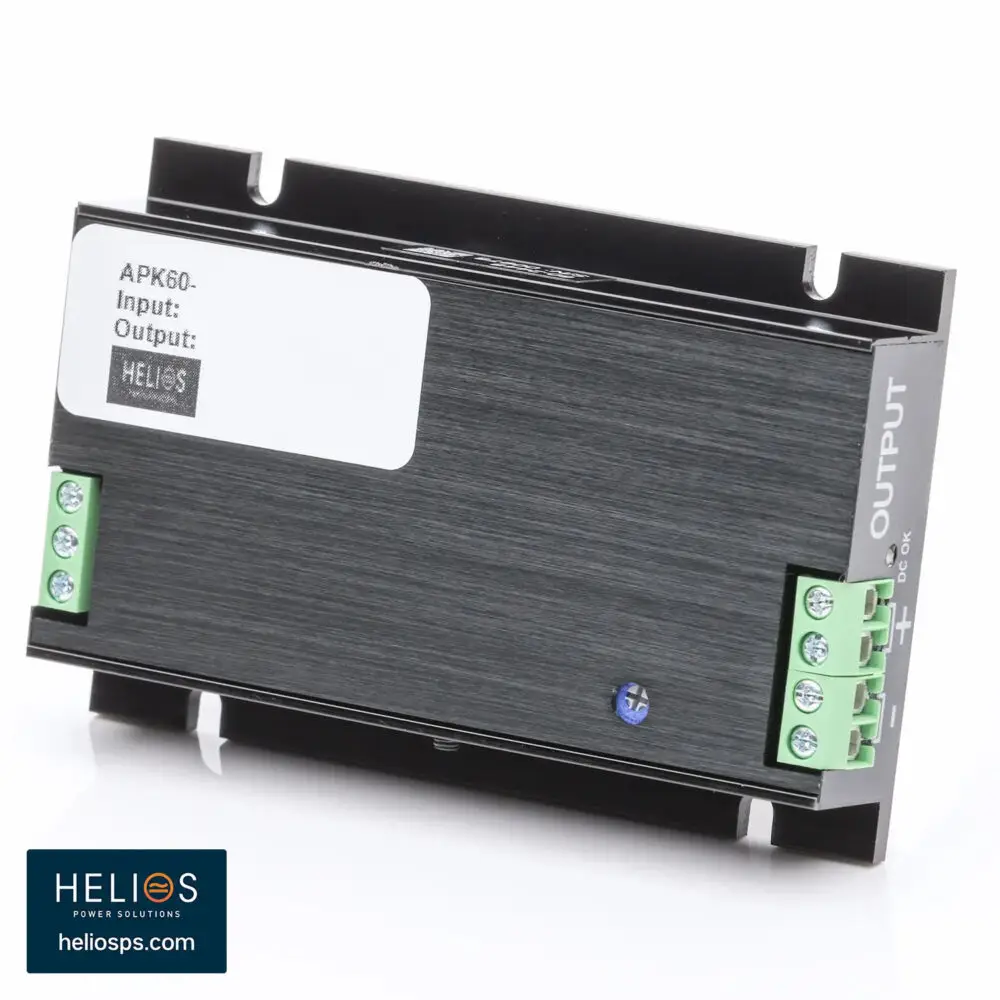

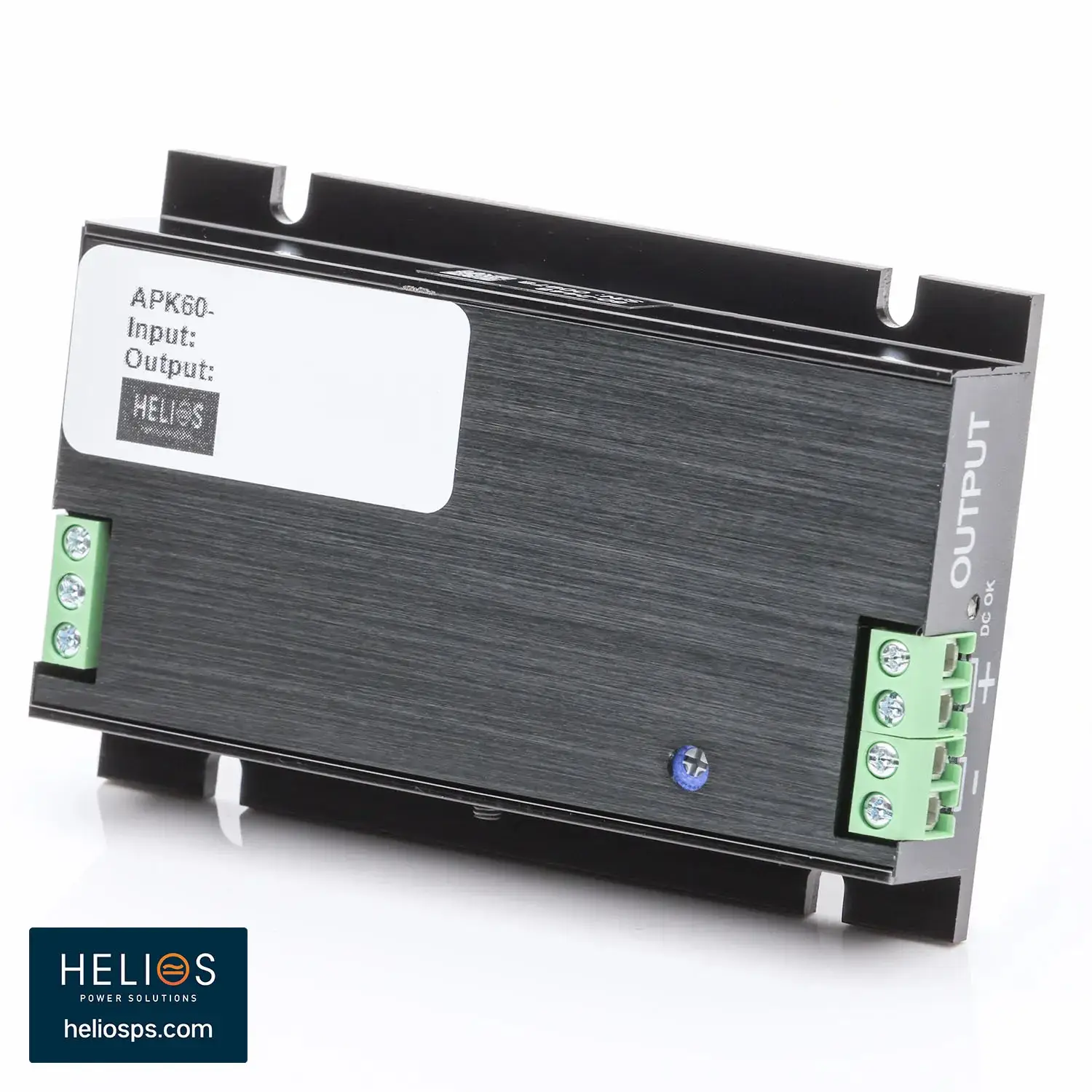

60W Hi-Rel Industrial DC-DC Converters - Image 2

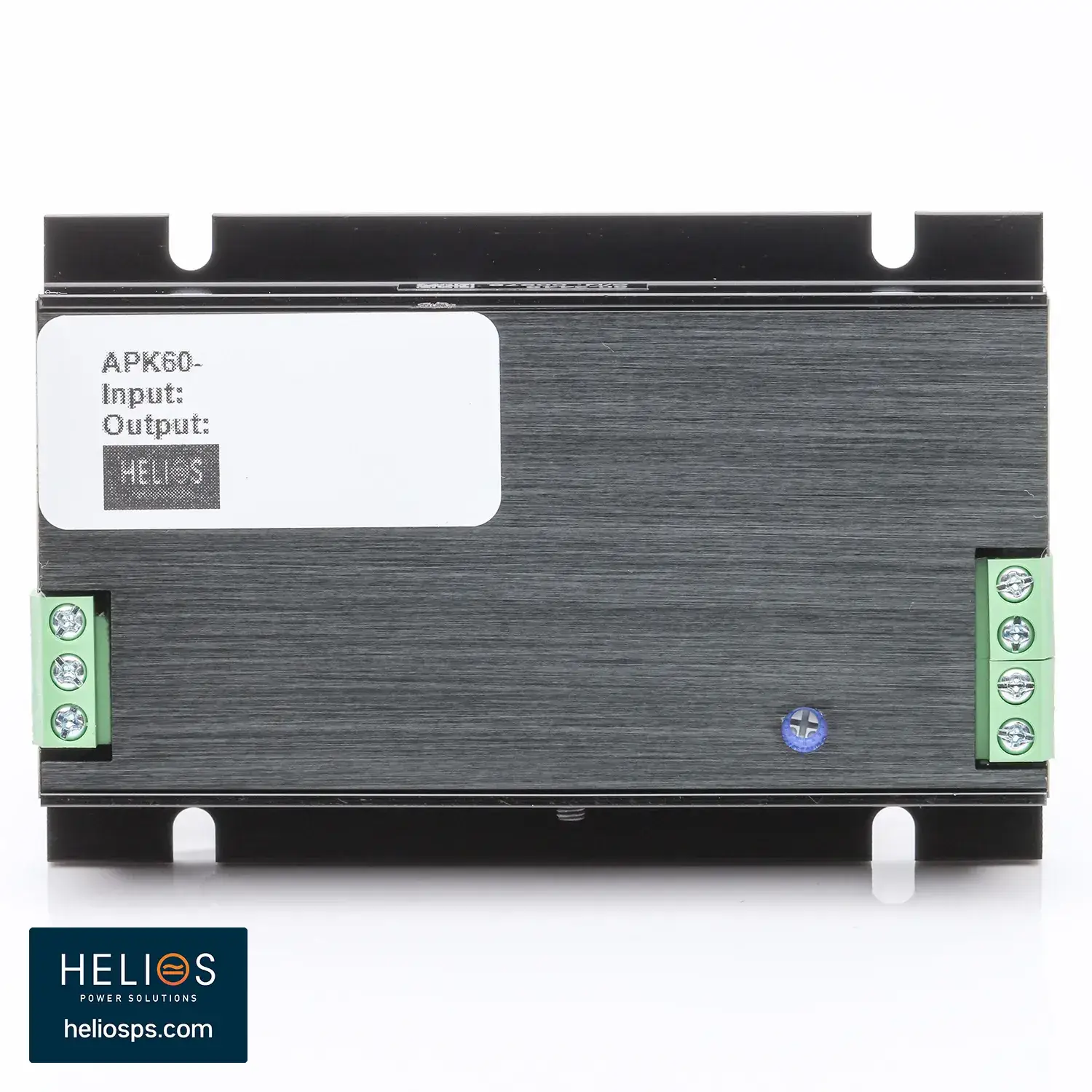

60W Hi-Rel Industrial DC-DC Converters - Image 3

60W Hi-Rel Industrial DC-DC Converters

  • 60W high reliability DC-DC converters
  • Ruggedised, fully encapsulated design for industrial environments
  • Nominal input options: 12Vdc, 24Vdc, 48Vdc
  • Output options: 5Vdc (selected inputs), 12Vdc, 24Vdc, 48Vdc (adjustable ±7%)
  • Panel mount with screw terminal connections
More Information...
SKU: APK60
Brand: Helios Power Solutions

AUD $180.00(From: AUD $198.00 inc GST)

Note: Australian GST only applies to orders delivered within Australia. International orders are exclusive of GST.

Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00
Volume discounts are automatically applied when added to the cart.
QuantityDiscountPer Unit Price
1-4 0% AUD $180.00
5-9 5% AUD $171.00
10+ 10% AUD $162.00

Description

APK60 Series – 60W High Reliability Industrial DC-DC Converters (Selectable Input and Output)

The APK60 series is a compact range of high reliability 60W DC-DC converters designed for demanding industrial, transport, and automation applications. With 12Vdc, 24Vdc, and 48Vdc input options, the series offers regulated outputs of 5Vdc, 12Vdc, 24Vdc, or 48Vdc depending on the model, with an adjustable range of ±7% for fine-tuning.

Built with a fully encapsulated, ruggedised design and convection cooling, the APK60 series is hardened against EMC interference and suitable for harsh electrical environments. High efficiency (up to 88%) and proven reliability with an MTBF of 720,000 hours ensure dependable long-term performance. The converters provide reinforced isolation and full protection against short circuit, overload, overvoltage, and over-temperature conditions.

Compact and robust, the APK60 series is designed for panel mounting and uses screw terminal connections for straightforward installation in control panels and high reliability power systems.

Features and Benefits

  • 60W high reliability DC-DC converters
  • Industrial-grade ruggedised design, fully encapsulated
  • Nominal input options: 12Vdc, 24Vdc, 48Vdc
  • Output options: 5Vdc (selected inputs), 12Vdc, 24Vdc, 48Vdc (adjustable ±7%)
  • Efficiency up to 88%
  • Comprehensive protections: short circuit, overload, overvoltage, over-temperature
  • Panel mount design with screw terminal connections

Key Applications

  • Industrial automation and process control
  • Transport and railway electronics
  • Battery-powered and portable systems
  • Telecommunications and networking equipment
  • Laboratory, instrumentation, and test equipment
  • High reliability systems requiring regulated DC power rails

Approvals and Compliance

  • IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-6
  • MIL-STD 810E (Shock & Vibration) – designed to meet
  • IEC61373 (Railway Shock & Vibration) – designed to meet
  • MIL-SPEC 217K (MTBF methodology) – designed to meet

Additional information

Weight.18 kg
Dimensions100 × 65 × 18 mm
Input Voltage

, ,

Output Voltage (Nominal)

, , ,

Output Power (Range)

Output Terminals

Screw Terminals

Specifications

Specification Summary – APK60 Series

Power Rating60W
Input Voltage Options12Vdc (10.8–16Vdc), 24Vdc (21–32Vdc), 48Vdc (42–64Vdc)
Output Voltage Options5Vdc (12V & 48V input only), 12Vdc, 24Vdc, 48Vdc (each adjustable ±7%)
Output Current5V: up to 12A
12V: up to 5A
24V: up to 2.5A
48V: up to 1.25A
EfficiencyUp to 88% (typical)
Isolation500Vdc (Input–Output, Input–Chassis, Output–Chassis)
ProtectionsShort circuit, overload, overvoltage, over-temperature
Environmental–40°C to +55°C convection cooled; up to +90°C chassis conduction cooled
Mechanical100 × 65 × 18 mm (W × H × D); Weight: 0.18kg; Panel mount; Screw terminal connections
MTBF720,000 hours (MIL-SPEC 217K)

This specification summary may contain errors. Please refer to the product datasheet for full specifications.

Range Summary

APK60 Series – Model Range Summary

Part NumberNominal InputInput RangeNominal OutputAdjustable RangeOutput CurrentPower
APK60-120512Vdc10.8–16Vdc5Vdc4.75–5.25Vdc12A60W
APK60-121212Vdc10.8–16Vdc12Vdc11.4–12.6Vdc5A60W
APK60-122412Vdc10.8–16Vdc24Vdc22.8–25.2Vdc2.5A60W
APK60-124812Vdc10.8–16Vdc48Vdc45.6–50.4Vdc1.25A60W
APK60-241224Vdc21–32Vdc12Vdc11.4–12.6Vdc5A60W
APK60-242424Vdc21–32Vdc24Vdc22.8–25.2Vdc2.5A60W
APK60-244824Vdc21–32Vdc48Vdc45.6–50.4Vdc1.25A60W
APK60-480548Vdc42–64Vdc5Vdc4.75–5.25Vdc12A60W
APK60-481248Vdc42–64Vdc12Vdc11.4–12.6Vdc5A60W
APK60-482448Vdc42–64Vdc24Vdc22.8–25.2Vdc2.5A60W
APK60-484848Vdc42–64Vdc48Vdc45.6–50.4Vdc1.25A60W

This range summary may contain errors. Please refer to the product datasheet for full specifications.

Available stock shown is updated live from our warehouse, with stock ready to dispatch. In the unlikely event something has gone wrong, our team will get in touch.

Australian GST applies only to Australian customers. If you’re shipping outside of Australia, GST will automatically be removed at checkout.

Note: other taxes and duties may apply on import to other countries.

Orders for in-stock items are shipped by the next business day, often earlier. We use TNT for orders within Australia, and DHL for international shipping. Delivery times will vary based on destination.

Yes! All shipments (within Australia and international) are tracked. Tracking information will be emailed to you. If you don’t receive the email, please contact our team.

You May Also Like...

120W Isolated Hi-Rel Industrial DC-DC Converters

APK120

AUD $365.00(From: AUD $401.50 inc GST)

Select options This product has multiple variants. The options may be chosen on the product page

30W Hi-Rel Industrial DC-DC Converters

APK25

AUD $148.00(From: AUD $162.80 inc GST)

Select options This product has multiple variants. The options may be chosen on the product page

24V 2.5A 60W DC UPS with Ethernet & MODBUS – DIN Rail

CBI6024A

AUD $366.67(AUD $403.34 inc GST)

Add to cart

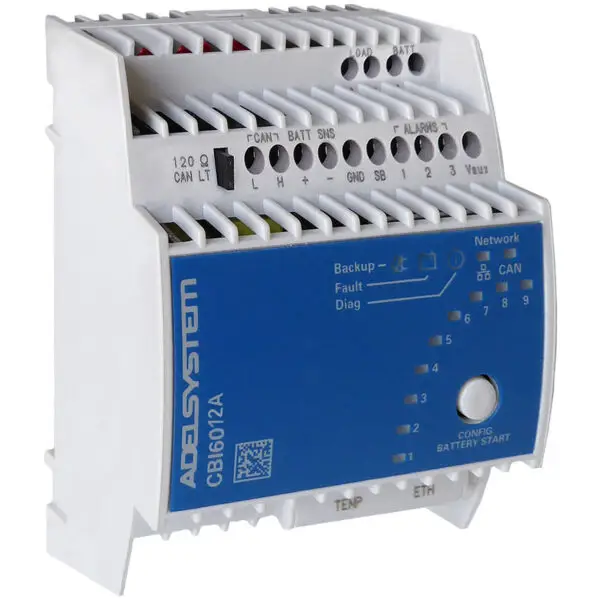

12V 4.5A 60W DC UPS with Ethernet & MODBUS – DIN Rail
