Description

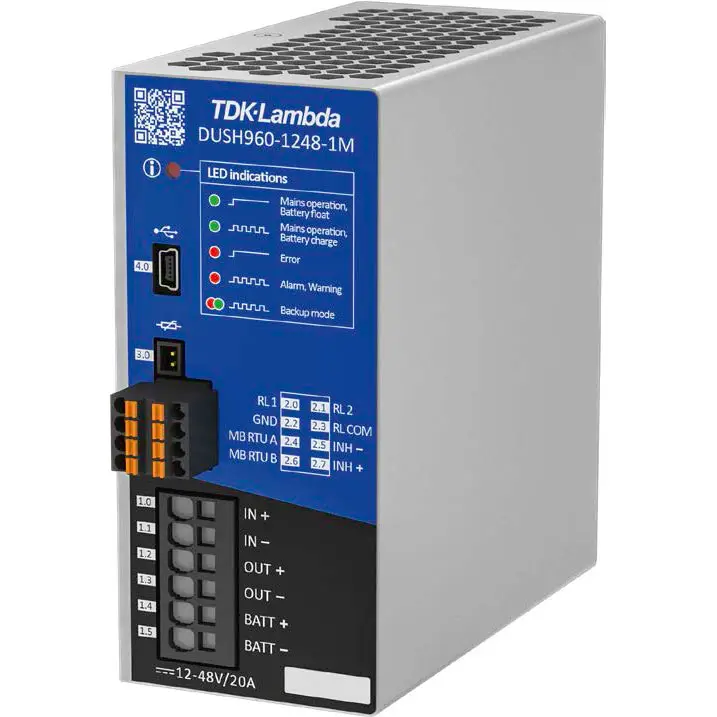

The DUSH960-1248-1M is a streamlined, high-efficiency DC UPS module delivering 960W of reliable power backup for DC systems ranging from 12V to 48V. Designed for DIN rail mounting and compact installations, this unit is ideal for applications where real-time visual status and remote communications are sufficient, eliminating the need for a local LCD interface.
Like its companion model, the 1M version includes a bi-directional DC-DC converter capable of regulating output across a programmable range of 10 to 58VDC, with input acceptance from 10 to 60VDC. The system ensures smooth, no-break transfer from DC mains to battery power during outages, and is compatible with a wide range of battery types including AGM, Gel, Lithium, NiCd, and Supercapacitor chemistries.

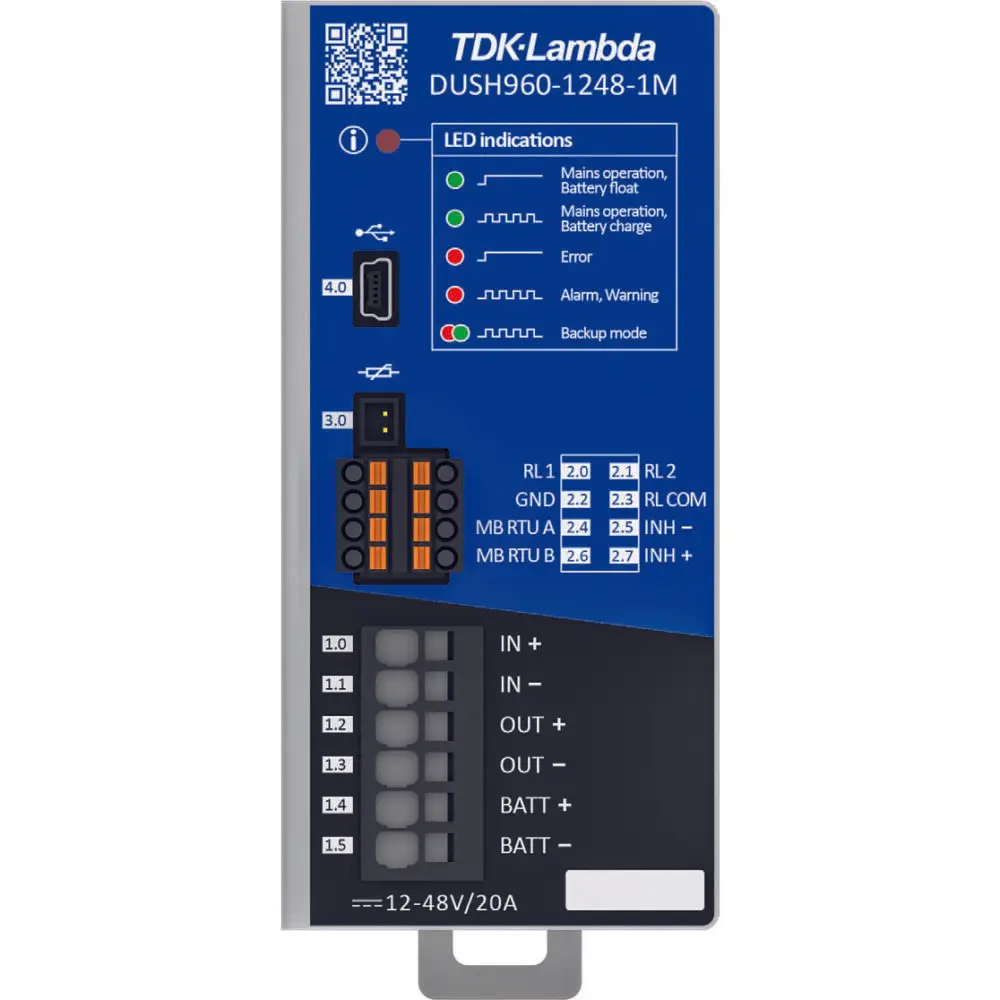

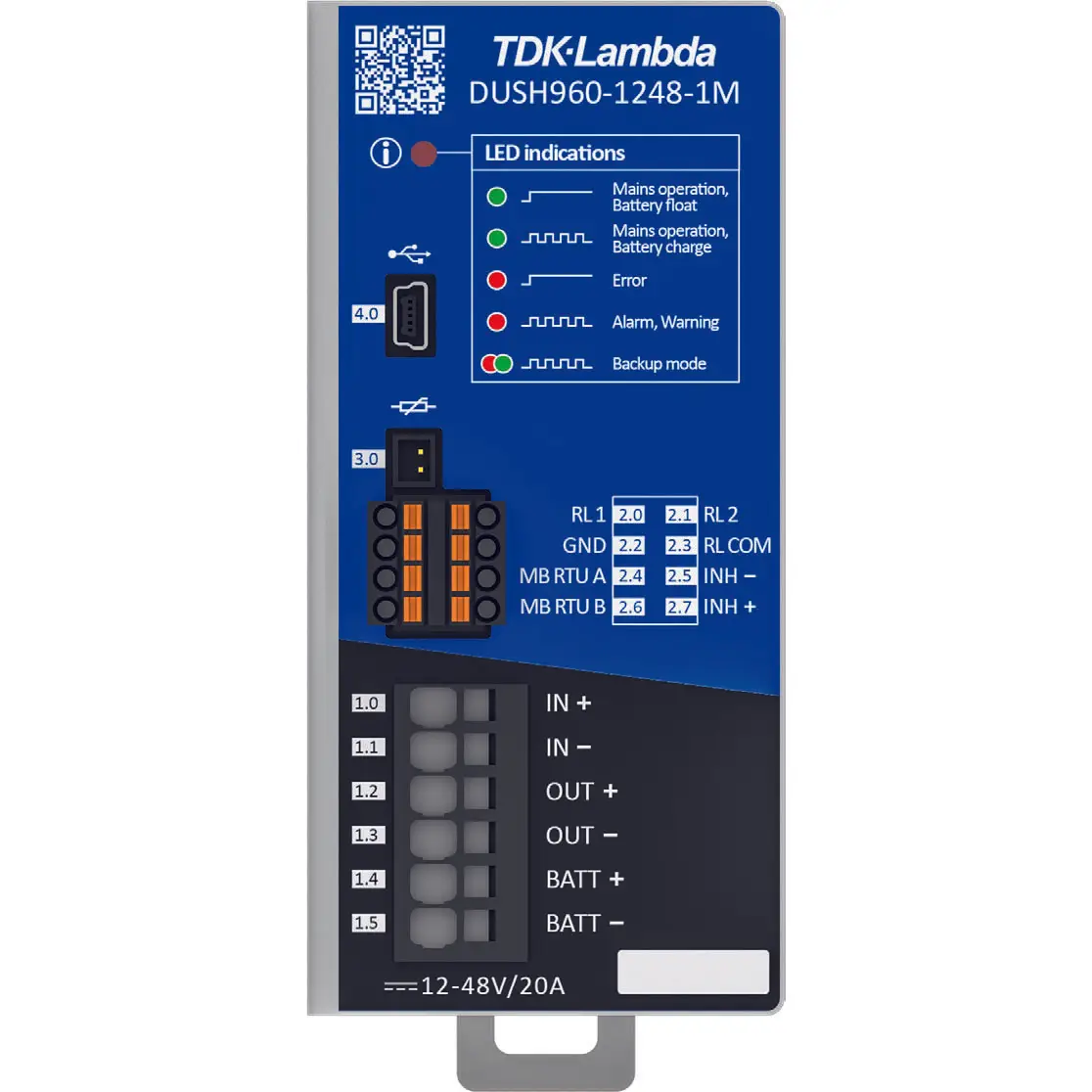

The front panel features clearly labeled LED indicators for battery status, load output, and fault conditions—ideal for panel builders and system integrators seeking simple status visibility without compromising on functionality. For monitoring and control, the unit supports RS485 Modbus RTU, enabling easy integration into industrial control systems, PLCs, or SCADA environments.
Advanced protections include deep discharge protection, programmable alarm thresholds, internal resistance monitoring, and temperature-based charging adjustment. The 1M model supports batteries up to 1000Ah and is equipped for continuous operation in demanding, mission-critical environments.
With high efficiency, robust construction, and full remote communication support, the DUSH960-1248-1M offers a dependable and compact solution for industrial DC backup power where local interaction is minimal or unnecessary.
