Description

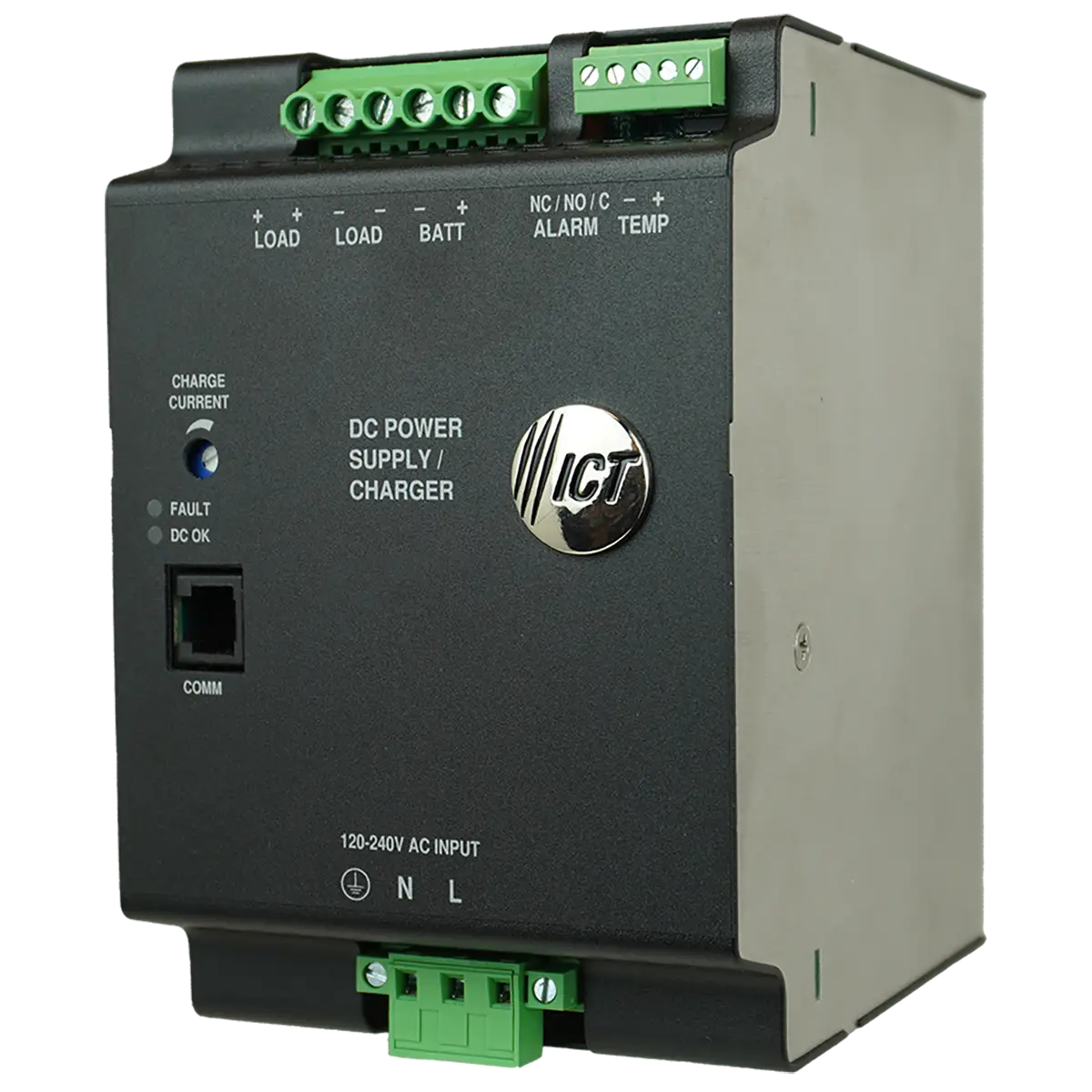

ICT360 DIN Series – DIN Rail DC Power Supply with Battery Backup – 24Vdc / 48Vdc, 360W
The ICT360 DIN Series is a compact, high-efficiency DIN-rail mounted DC power supply delivering 360W of regulated 24Vdc or 48Vdc output with integrated battery charging and Low Voltage Disconnect (LVD). It is designed for unattended and remote installations requiring dependable DC power with backup capability.
Both models feature wide-range 108–264Vac input, temperature-compensated charging for lead-acid batteries, adjustable battery charge current and dual DC load outputs to minimise voltage drop in longer cable runs. The floating DC output allows use in either positive or negative grounded systems.
When paired with the ICT-DIN-PDU6 intelligent power distribution unit, the ICT360 becomes part of a fully managed DC power system with Ethernet-based monitoring of voltage, current, temperature and alarms, enabling remote visibility and simplified maintenance.
Features and Benefits
- 360W continuous DC output in 24Vdc or 48Vdc variants.
- Integrated battery charging and LVD protects batteries from deep discharge.
- High efficiency (90–91%) reduces heat and energy consumption.
- Wide 108–264Vac input supports global AC supplies.
- Dual load outputs improve installation flexibility and voltage stability.
- Optional Ethernet monitoring and power distribution capability when used with ICT-DIN-PDU6.
Key Applications
- Wireless communications and fixed wireless access
- Internet of Things (IoT) infrastructure
- Security, surveillance and access control systems
- Industrial and automation DC power
- Remote cabinets requiring compact battery-backed power
Safety Features
- Over-voltage, over-current and over-temperature protection.
- Integrated LVD disconnect and reconnect thresholds.
- Floating DC output for flexible grounding schemes.
- Form C dry-contact alarms for external monitoring.
- Convection-cooled design with no internal fan.
Safety & Compliance
- Designed to UL/CSA 60950-1 safety requirements.
- Complies with FCC Part 15 Class B emissions limits.
- Meets EN61000-6-2 and EN61000-6-3 immunity standards.
- RoHS compliant.
