Description

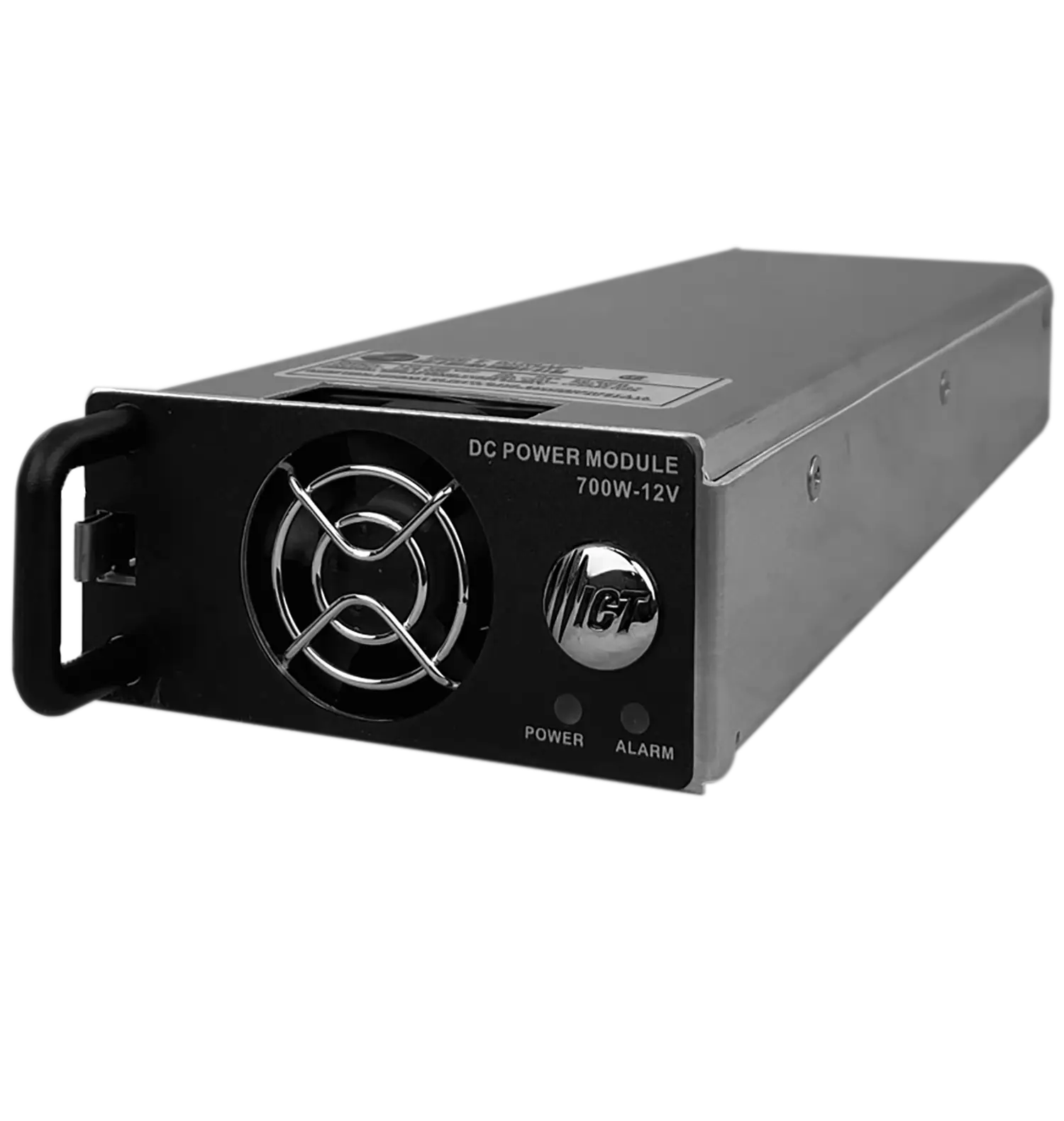

ICT700-12PM – Hot-Swappable DC Power Module – 12Vdc, 700W
The ICT700-12PM is a high-performance 12Vdc hot-swappable power module designed for use in ICT’s intelligent DC power systems. Rated at 700W and factory-set to 13.8Vdc, it offers stable, regulated power for wireless communications, broadband and industrial networks that require dependable 12Vdc supply rails.
It operates from a wide-range 100–300Vac input with active power factor correction and delivers efficiency up to 90%. Multiple modules can be installed in a shelf for N+1 redundancy or for scalable power capacity, ensuring maximum uptime for mission-critical sites.
When installed in ICT’s Ethernet-enabled Modular Power Series or Hybrid Power Series shelves, the module becomes part of a fully managed power system with remote monitoring and control, SNMP support, alarm reporting and optional managed load distribution.
Features and Benefits
- 12Vdc regulated output with 700W continuous power for high-demand equipment.
- Factory-set to 13.8Vdc with wide adjustment range 11.5–15.5Vdc.
- High-density, hot-swappable design supports N+1 redundancy.
- Active PFC AC input improves energy efficiency and reduces utility cost.
- Full protection: over-temperature, over-current, over-voltage shutdown and current limiting.
- Compact module size allows high-capacity power shelves in 19-inch racks.
Key Applications
- Distributed antenna systems and small-cell networks
- Radio access network and microwave power systems
- FTTP/H and GPON network cabinets
- Security, surveillance and industrial automation
- DC power expansion or redundancy upgrades in existing ICT installations
Safety Features
- Over-temperature and over-current shutdown for safe fault protection.
- Input and output over-voltage protection prevents downstream equipment damage.
- Built-in current limiting and Oring MOSFETs for reliable parallel operation.
- Fan failure detection with remote alarm signalling via host shelf.
- Wide −30°C to +60°C operating range with thermal derating above +50°C.
Safety & Compliance
- Designed to EN62368-1 safety standard when installed in compliant ICT DC power systems.
- Meets FCC Part 15/B and EN55032 emissions, EN61000-6-2 / EN61000-6-3 immunity and EN61000-3-2 / EN61000-3-3 power quality requirements.
- RoHS-compliant construction.
Compatible ICT Power Systems
- ICT Modular Power Series – Fully managed 1RU power systems up to 1400W.
- ICT Hybrid Power Series – 1RU shelves combining rectifier power with integrated DC-DC conversion.
- ICT MPS Ultra – High-capacity 2RU systems supporting multiple modules.
- ICT Hybrid Ultra – 2RU hybrid DC systems with large battery management capability.
